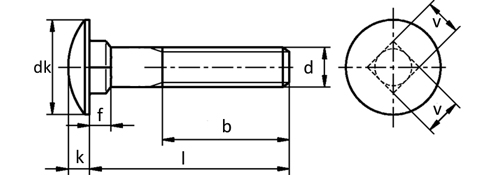

| d | M 5 | M 6 | M 8 | M 10 | M 12 | M 16 | M 20 |
| P (pitch) | 0,8 | 1 | 1,25 | 1,5 | 1,75 | 2 | 2,5 |
| k (max) | 3,3 | 3,88 | 4,88 | 5,38 | 6,95 | 8,95 | 11,05 |
| dk (max) | 13,55 | 16,55 | 20,65 | 24,65 | 30,65 | 38,8 | 46,8 |
| f (max) | 4,1 | 4,6 | 5,6 | 6,6 | 8,75 | 12,9 | 15,9 |
| v (max) | 5,48 | 6,48 | 8,58 | 10,58 | 12,7 | 16,7 | 20,84 |
| b (l ≤ 125) |
16 | 18 | 22 | 26 | 30 | 38 | 46 |
| b (125 < l ≤ 200) |
22 | 24 | 28 | 32 | 36 | 44 | 52 |
| b (l > 200) |
_ | _ | 41 | 45 | 49 | 57 | 65 |
| l | 16-80 | 16-150 | 20-150 | 20-200 | 30-200 | 55-200 | 70-200 |
| Material Types | - |
Steel (8.8) | |
| - | Stainless Steel |
||
| - |
Brass |
||
| Coating Types |
- |
Electrolytically Plated (Zn, ZnNi) | |
| - | Hot Dip Galvanized (HDG) |
||
| - |
Zinc-Flake Coated (flZnyc, flZnnc) |
