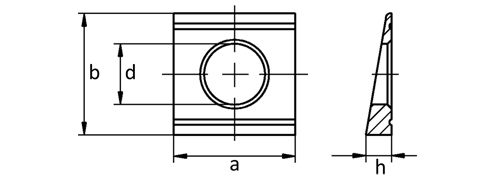

| d | 13 | 17 | 21 | 23 | 25 | 25 | 28 | 28 | 31 | 31 | 37 | 37 |
| a | 26 | 32 | 40 | 44 | 56 | 56 | 56 | 56 | 62 | 62 | 68 | 68 |
| b | 30 | 36 | 44 | 50 | 56 | 56 | 56 | 56 | 62 | 62 | 68 | 68 |
| h | 4,9 | 5,9 | 7 | 8 | 8,5 | 7,65 | 8,5 | 7,65 | 9 | 8,05 | 9,4 | 8,7 |
| Uygun Diş Çapı For Thread Size |
M 12 | M 16 | M 20 | M 22 | M 24 | M 24 | M 27 | M 27 | M 30 | M 30 | M 36 | M 36 |
| Material Types |
- |
Steel | |
| Coating Types |
- |
Hot Dip Galvanized (HDG) |
