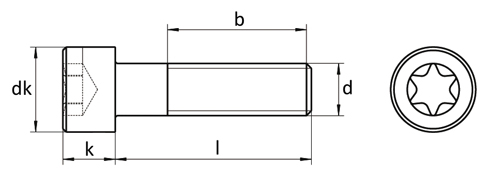

| d | M 2 | M 2,5 | M 3 | M 4 | M 5 | M 6 | M 8 |
| P (pitch) | 0,4 | 0,45 | 0,5 | 0,7 | 0,8 | 1 | 1,25 |
| k (max) | 2 | 2,5 | 3 | 4 | 5 | 6 | 8 |
| dk (max) | 3,8 | 4,5 | 5,5 | 7 | 8,5 | 10 | 13 |
| b | 16 | 17 | 18 | 20 | 22 | 24 | 28 |
| l | 3-20 | 4-25 | 5-30 | 6-40 | 8-50 | 10-60 | 12-80 |
| d | M 10 | M 12 | M 14 | M 16 | M 18 | M 20 |
| P (pitch) | 1,5 | 1,75 | 2 | 2 | 2,5 | 2,5 |
| k (max) | 10 | 12 | 14 | 16 | 18 | 20 |
| dk (max) | 16 | 18 | 21 | 24 | 27 | 30 |
| b | 32 | 36 | 40 | 44 | 48 | 52 |
| l | 16-100 | 20-120 | 25-140 | 25-160 | 30-180 | 30-200 |
| Material Types |
- |
Steel (8.8) | |
| Coating Types |
- |
Electrolytically Plated (Zn, ZnNi) | |
| - |
Zinc-Flake Coated (flZnyc, flZnnc) |
