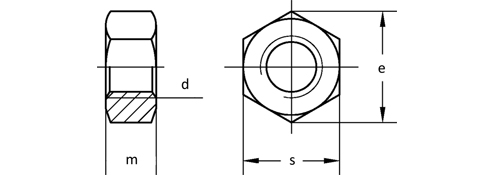

| d | M 8x1 | M 10x1 M 10x1,25 |
M 12x1,25 M 12x1,5 |
M 14x1,5 | M 16x1,5 | M 18x1,5 | M 20x1,5 M 20x2 |
| e (min) | 14,38 | 17,77 | 20,03 | 23,96 | 26,75 | 29,56 | 32,95 |
| m (max) | 7,5 | 9,3 | 12 | 14,1 | 16,4 | 17,6 | 20,3 |
| s | 13 | 16 | 18 | 21 | 24 | 27 | 30 |
| d | M 22x1,5 | M 24x2 | M 27x2 | M 30x2 | M 33x2 | M 36x3 |
| e (min) | 37,29 | 39,55 | 45,2 | 50,85 | 55,37 | 60,79 |
| m (max) | 21,8 | 23,9 | 26,7 | 28,6 | 32,5 | 34,7 |
| s | 34 | 36 | 41 | 46 | 50 | 55 |
| Material Types |
- |
Steel (6, 8, 10) | |
| - | Stainless Steel |
||
| - |
Brass |
||
| Coating Types |
- |
Electrolytically Plated (Zn, ZnNi) | |
| - | Hot Dip Galvanized (HDG) |
||
| - |
Zinc-Flake Coated (flZnyc, flZnnc) |
